Seaory E80A Portable Card Dispenser

E80A

Overview
Specifications
Download

Top

Discover the Features of SEAORY E80A

As the leader in China's card printer market, we guarantee the most complete customer experience with product quality and customer service that surpassing your imagination

Key Features

High-resolution dye-sublimation(direct-to-card) printing technology

Higher image quality and clear text

High-speed of continuous printing, lightweight, simple operation and maintenance

High-speed printer engine

Equipped with LCD touch screen, support handwriting.

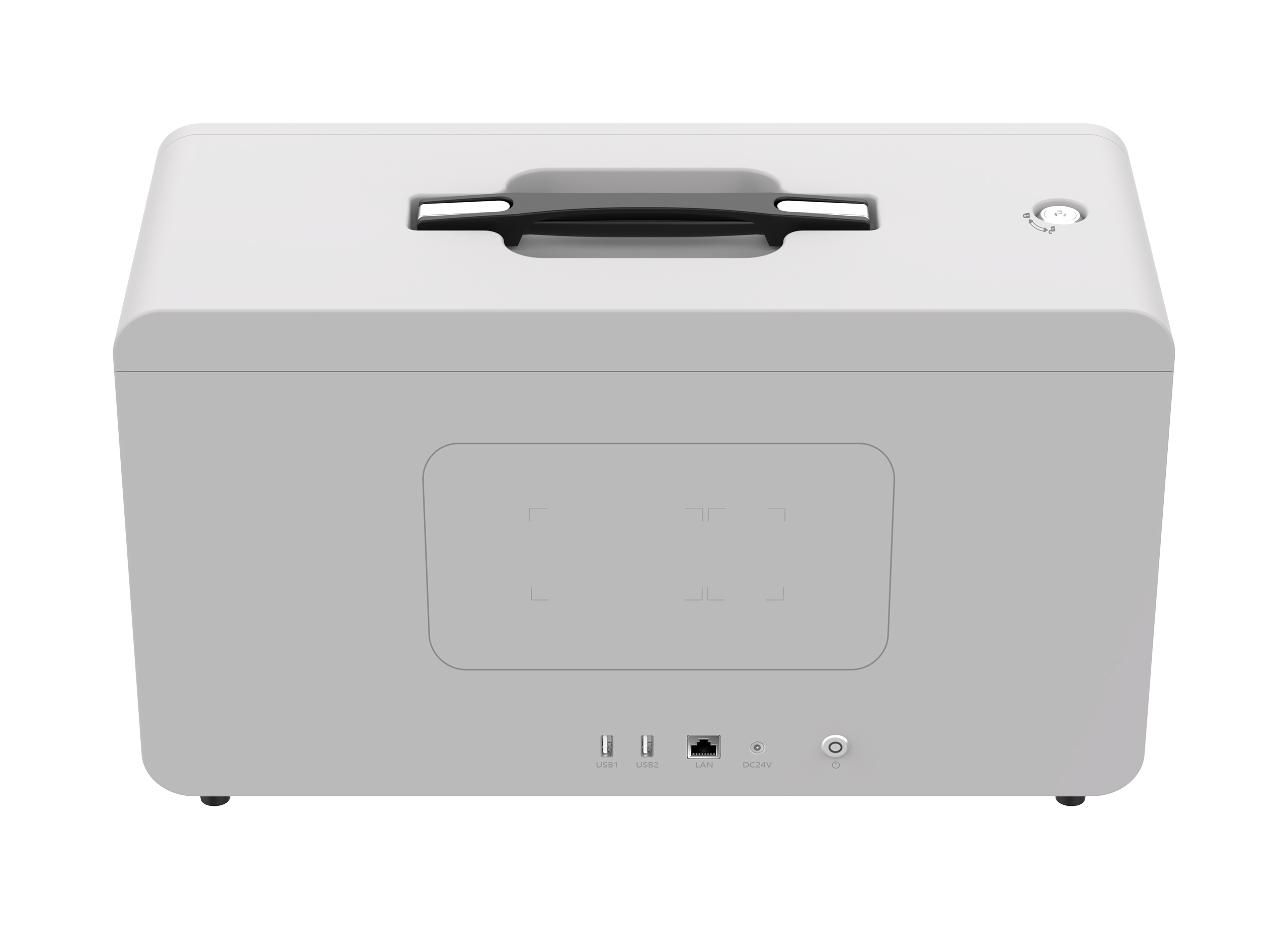

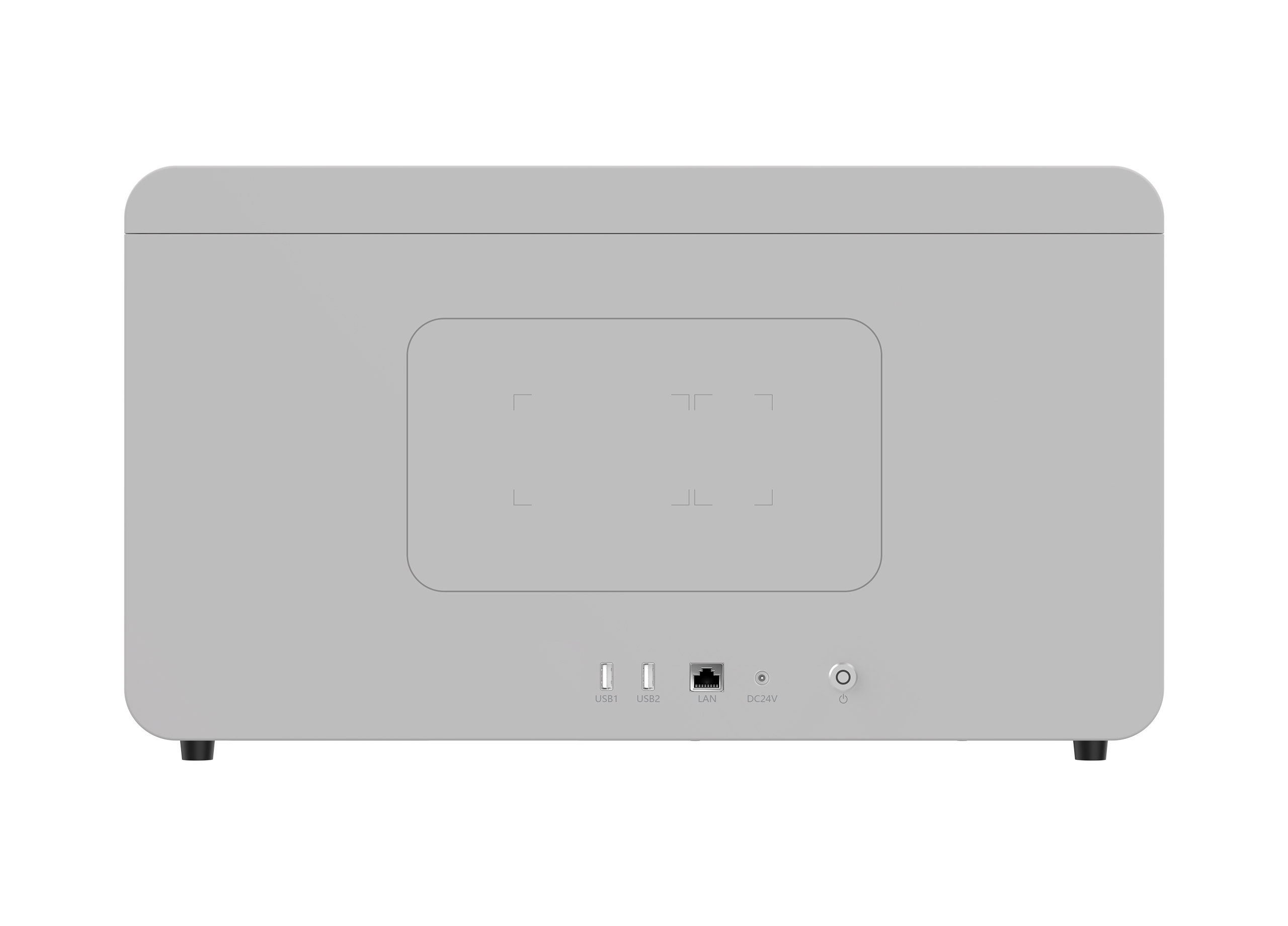

Equipped with one extra screen on the back, support mirror and extended display with front screen

Support dual-sided printing (optional)

Indent printing, all characters with indenting are clear and easy to recognize

More Value- added Functions

Automatic card feeding

Support Manual Card Feeding

Card holding function, Automatic card-swallowing function while take card timeout

Available to set the length of card-output and time of automatic card-swallowing

Creative design
Keep improving

Driver: support Windows XP/7/8/10/11, Windows Server 2003/2008/2012/2016,Linux, Android

Card design software: ICARDE, support Windows XP/7/8/10/11

Concise design, friendly operation, powerful function

Databases connection available, completely independent intellectual property rights

Consumables

Full panel YMCKO ribbon: 100 prints/roll, 300 prints/roll

1/2 panel ymcKOKO ribbon:250 prints/roll

1/2 panel ymcKO ribbon:450 prints/roll

Monochrome black ribbon: 100mx60mm, 200mx60mm

Monochrome ribbon(gold/silver/white/red/ blue):100mx60mm

KO Ribbon: 500 prints/roll

Anti-counterfeit Invisible UV Ribbon: 100m×60mm

Indenting ribbons(black):4900 characters/roll

Optional Multi-function Module

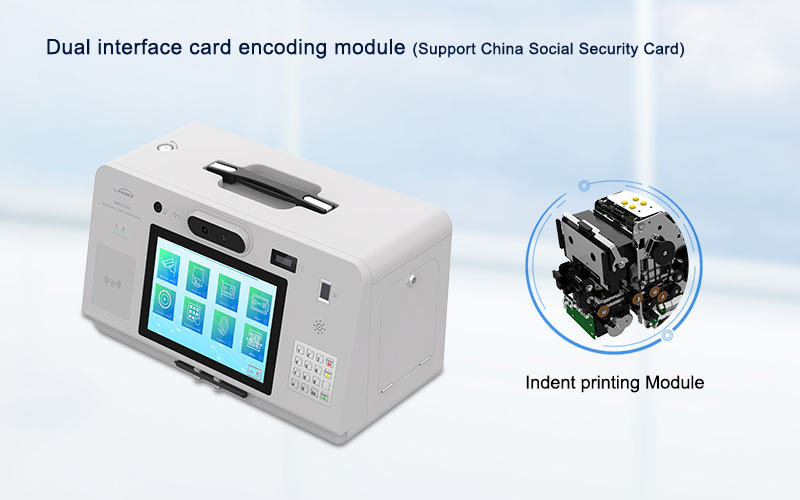

Contact & Contactless Encoding module

Hico&Loco1/2/3 tracks magnetic card encoding module

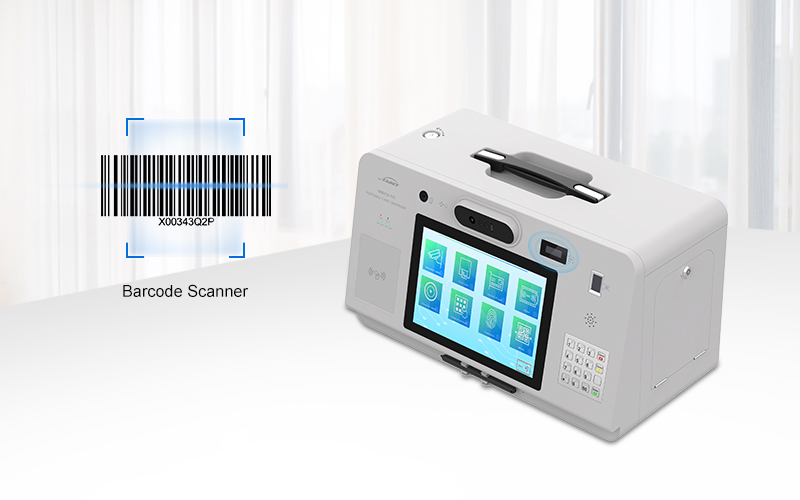

Barcode and QR Code Scanning Module

WIFI, Bluetooth, 4/5G Remote Communication Module

Indenting modules, Lithium battery pack

Product Name	Portable Card Dispenser
Product Model	Seaory E80A
Print Technology	Dye-sublimation(Direct-to-card), Indenting：Physical pressing
Print Resolution	300dpi × 300dpi，300dpi × 600dpi，300dpi × 1200dpi
Printing Module	Single-sided printing	Dual-sided printing	Single-sided printing + indenting	Dual-sided printing + indenting
Indented Characters	Not Supported	Not Supported	CVV2 code(10 digits from 0 to 9)
Print Speed	Monochrome printing: 4s per card Full-color YMCKO printing: 20s per card	Monochrome printing: 4s per card(single-sided) Full-color YMCKO printing: 20s per card(single-sided), 42s per card(dual-sided)	Monochrome printing: 27s per card for single-sided on the front + indenting on the rear side Full-color YMCKO printing: 42s per card for single-sided on the front + indenting on the rear side	Monochrome printing: 27s per card for single-sided on the front + indenting on the rear side Full-color YMCKO printing: 42s per card for single-sided on the front + indenting on the rear side, 42s per card(color dual-sided)
Input hopper capacity	70 cards(0.76mm)	100 cards(0.76mm)	70 cards(0.76mm)	100 cards(0.76mm)
Reject tray capacity	30 cards(0.76mm)
Card Material	PVC cards, Composite cards(PVC+PET), rewritable cards
Card Size	ISO CR80(53.98mm×85.60mm)
Card Thickness	0.254mm—1.05mm
Operating System	Windows，Android，Linux, or Windows+Android
Hardwares	Hardwares adaptation according to the operating system and related requirements

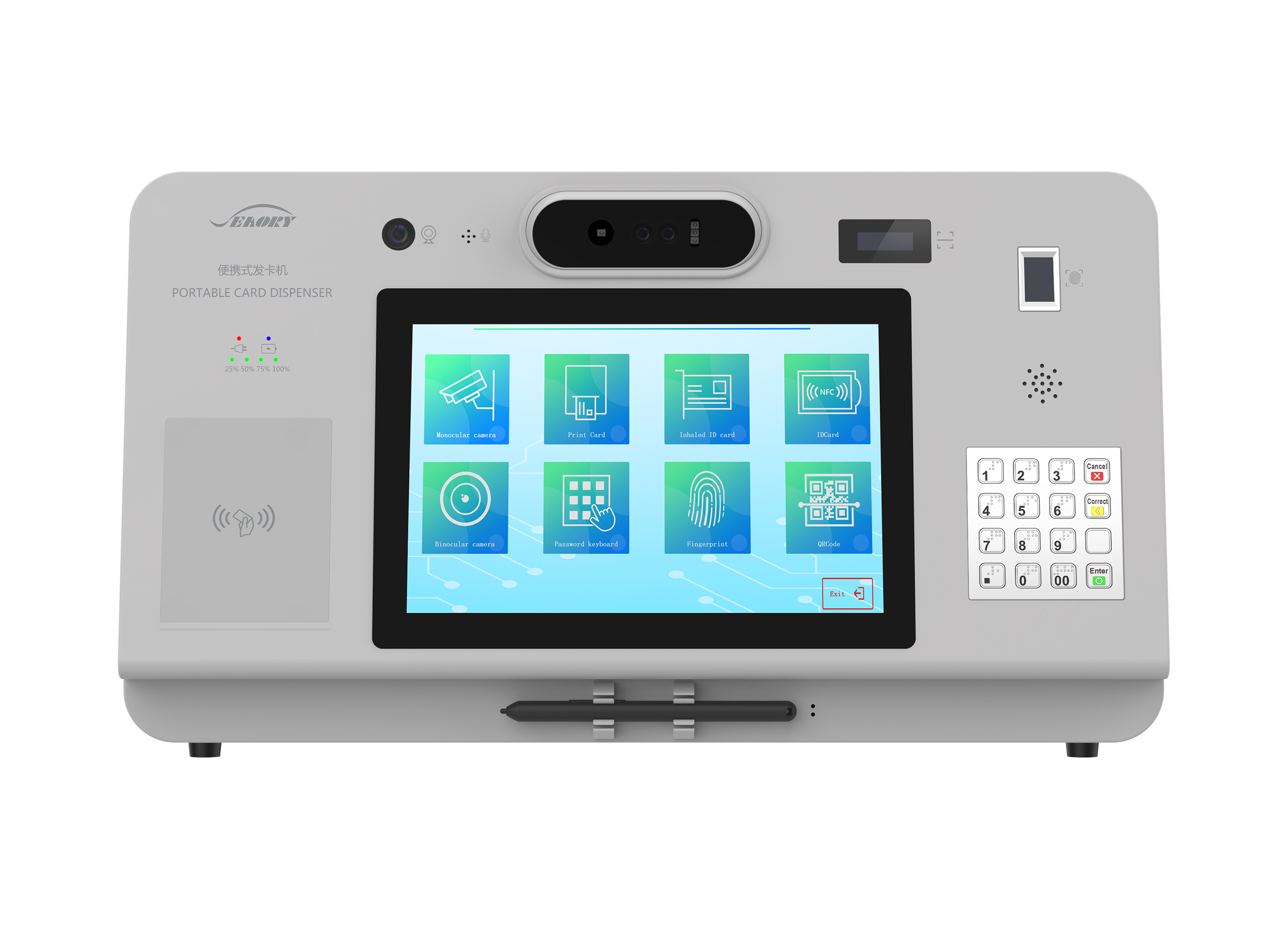

Front Screen	10.1 inch LCD touch screen, support handwriting, up-down flipping

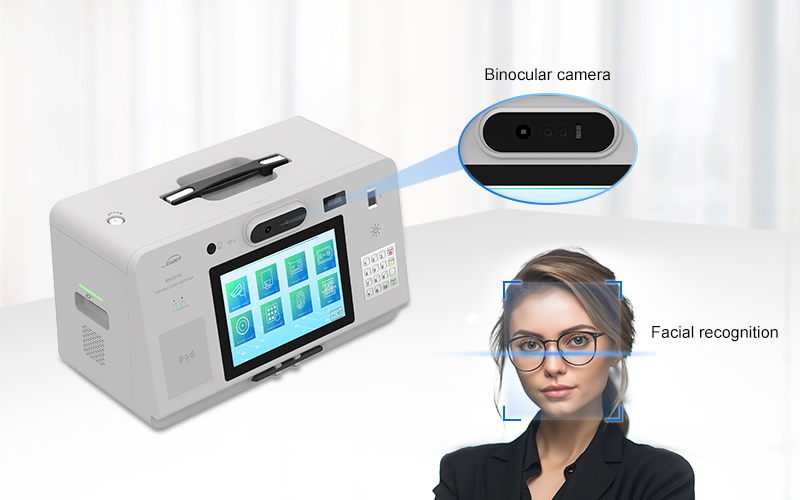

Optional Multi-function Module	1.RFID card reading 2.Mental PIN pad: support on-board encryption & 3DES encryption 3.Fingerprint module: support fingerprint acquisition, feature processing, fingerprint comparison, etc. 4.Binocular camera: facial recognition, face liveness detection(optional), facial comparison(optional), etc. 5.Environmental camera: monocular camera for environmental monitoring 6.Chip card encoding module: contactless & contact dual interface encoding, ISO7816/ISO14443 TYPE A/B; PC/SC 7.Magnetic stripe card encoder: support ISO7811 hico&Loco 1/2/3 tracks encoding 8.Barcode scanner: support barcode, QR code reading 9.WIFI: Dual-band 2.4G/5G, IEEE 802.11b/g/n; network speed: 300Mbps 10.Bluetooth: bluetooth 4.0 or above (as you choose), transmission distance 6-10 meters 11.Remote communication module: 4G or 5G remote communication module (as you choose), acess Internet by plugging in a SIM card 12. Lithium battery pack:Optional lithium battery pack, voltage 14.54V, capacity 10.5Ah
Software	According to operation system and customer needs, all the related Software Development Kits are able to be provided, including demos and code examples
Power Supply	Power adapter，AC100-240V 50/60Hz， DC24V 5A
Dimensions & Weight	510mm(L)×240mm(W)×287mm(H)，11.5Kg two panels
Security	Locks: protect cards, ribbons, 4G/5G chips and reject tray from being stolen
Operating environment	1. Regular temprature: 15℃-30℃（59-86℉), 20%-65% RH non-condensing 2. Lowest/ Highest temprature：0℃(32℉)/40℃(104℉), 20%-65% RH non-condensing
Storage environment	Temp：-5℃-70℃(23-158℉), 20% - 70% RH non-condensing and ventilated environment
