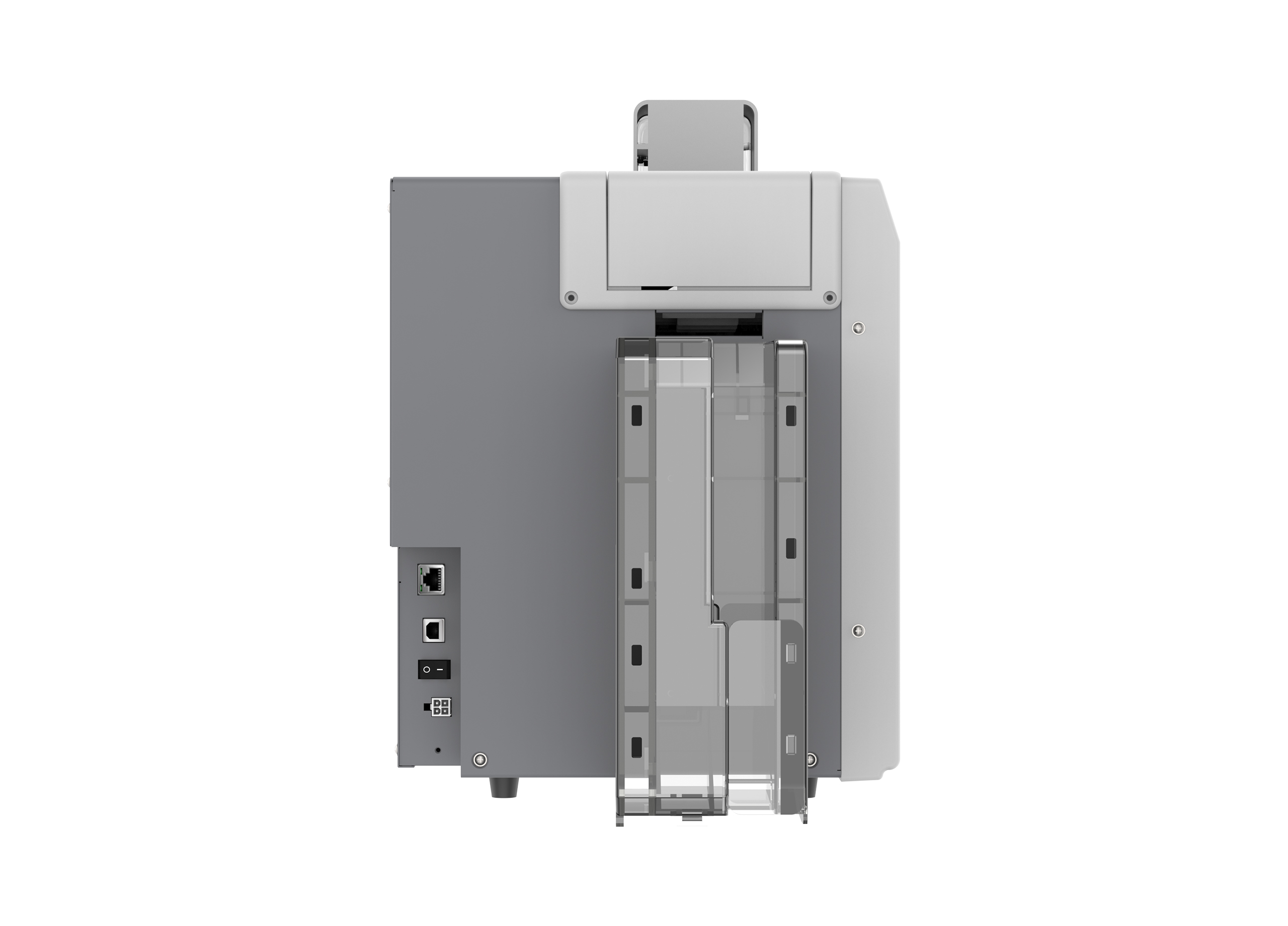

Dye Sublimation retransfer card printer
Default printing resolution 300 dpi × 300 dpi
With 3.5-inch color touch screen, 256MB memory
Available to set the direction of output card input&output,Dual-sided printing, Alarm for no card and defective card slot
Body size: 568mm × 272mm × 398mm, N.W: 12 kg
Monochrome printing:12-16s per card(single-sided), 30-34s per card(dual-sided),using ribbon saving technology
Full-color YMCK Printing：20s per card(single-sided),38s per card(dual-sided)
Print dimension is ISO CR80(53.98mmx85.6mm) standard card
Input hopper capacity is 200pcs cards(0.76mm)
Output hopper capacity is 200pcs cards(0.76mm)
Defective card slot capacity is 25pcs cards(0.76mm)
Edge-to-edge printing of the entire card
Driver: support Windows XP/7/8/10/11, Windows Server 2003/2008/2012/2016,Linux
Card design software: ICARDE, support Windows XP/7/8/10/11
Concise design, friendly operation, powerful function
Databases connection available, completely independent intellectual property rights
1. Monochrome ribbon: 100m×60mm;
2. YMCK ribbon full panel : 500 / 1000 prints/roll;
3. YMCKK ribbon full panel: 500 prints/roll;
4. YMCKI ribbon full panel: 500 prints/roll;
5. YMCKHs ribbon full panel: 500 prints/roll;
6. Security YMCFK ribbon: 500 prints/roll;
7. Transparent retransfer film: 500 / 1000 prints/roll.
Magnetic stripe card encoding module: Support ISO7811 Hi-co/Low-co,support 1/2/3 tracks encoding
Dual interface chip card reading and writing module:
1.Support CPU card (ISO 7816, T=1 & T=0)
2. 4 SAM slots (same as SIM card size complied with GSM 11.11)
3. Support contactless CPU card (ISO14443 TYPE A/B),PC/SC
Contactless ID card encoding module : Support 125KHz (Specified chip type)
UHF Chip card encoding module: Support EPC C1 GEN2/ ISO 18000 -6C Air interface protocol standard
